JCO production line
used JCO machine
product no:641 written date:Sep 10th, 2025- product description
- Technical Parameters

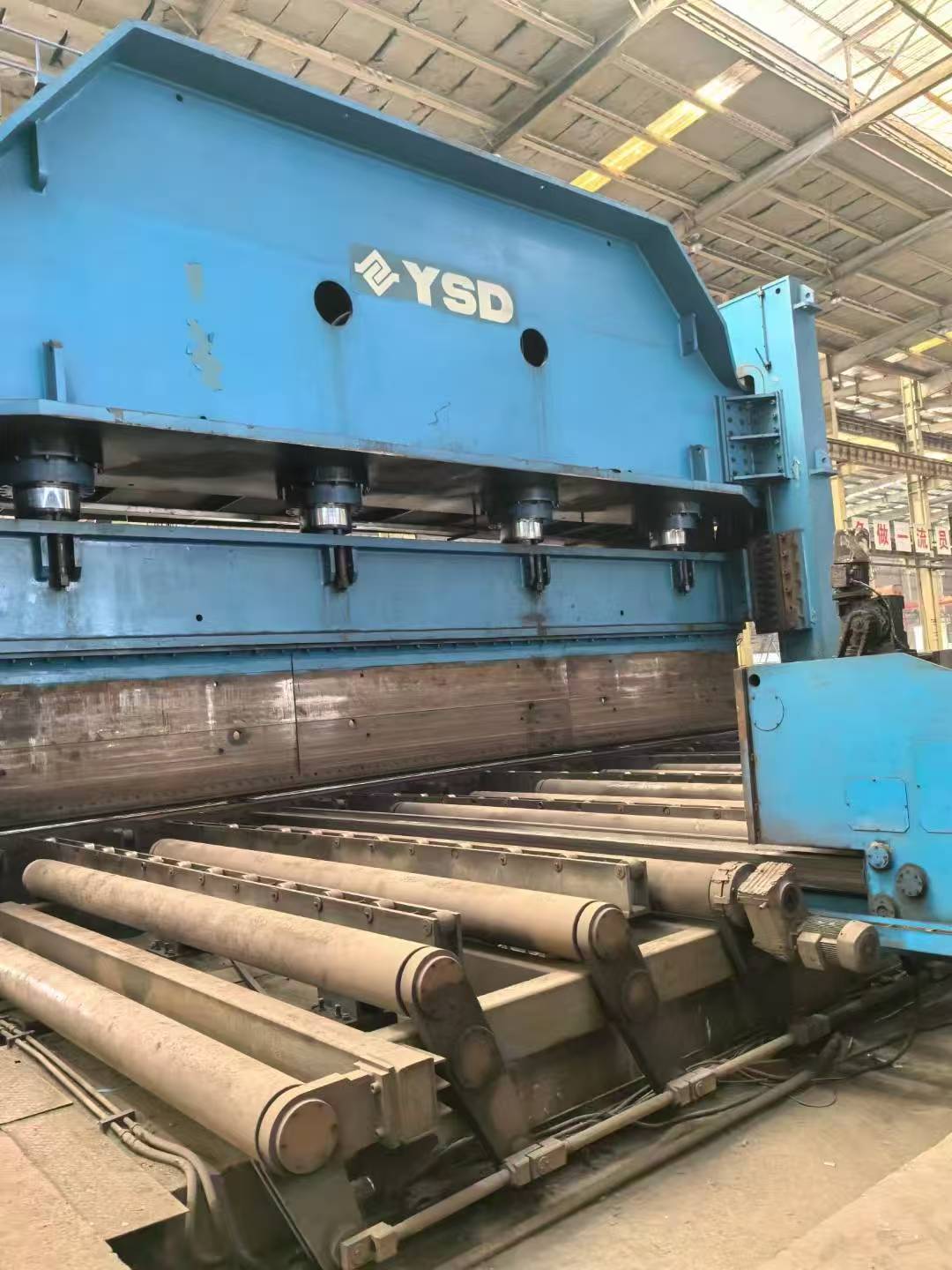

Sizing and Straightening Machine: Pressure 2000 tons, diameter range φ360~φ1460mm, thickness 5~50mm, length 6000~12000mm. Manufacturer: Tianshui Forging Press.
Forming Machine: Pressure 3600 tons, diameter range φ406~φ1422mm, thickness 10~50mm, length 12500mm. Manufacturer: Huangshi Forging Press.
Edge Bevelling Machine (Edge Milling Machine): 4 cutting heads, processing thickness 8~50mm, plate width 1200~4500mm. Can process plate edges into X-type (double-V), straight (square), and single-bevel types. Clamp feeding. Manufacturer: Tianshui Forging Press.
Pre-Bending Machine: Double-sided pre-bending, pressure 1200 tons, thickness range 8~50mm, plate width 1200~4500mm. Manufacturer: Tianshui Forging Press.
Straightening Machine: Can straighten pipes up to φ1422mm, thickness 50mm. Manufacturer: Tianshui Forging Press.

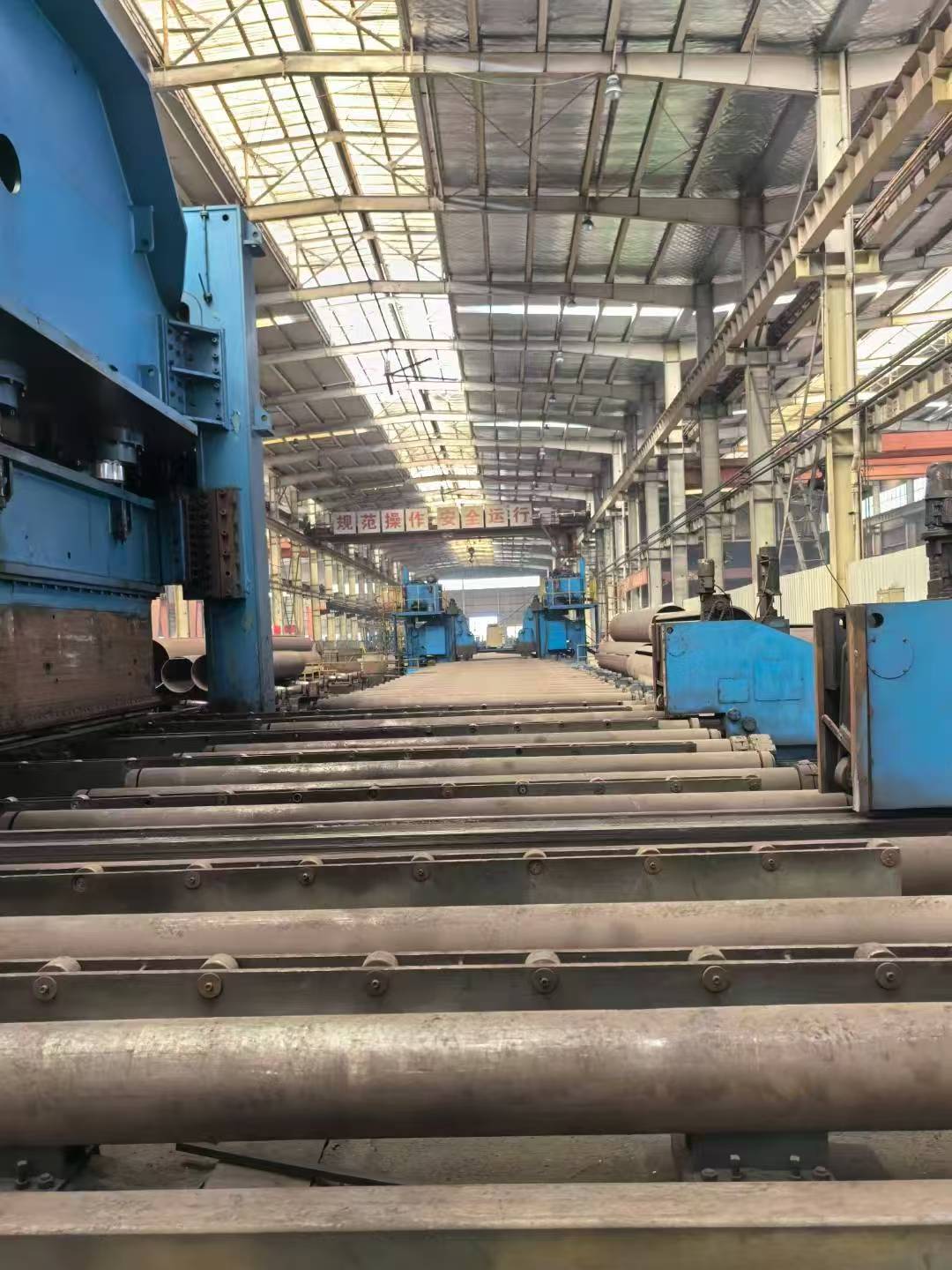

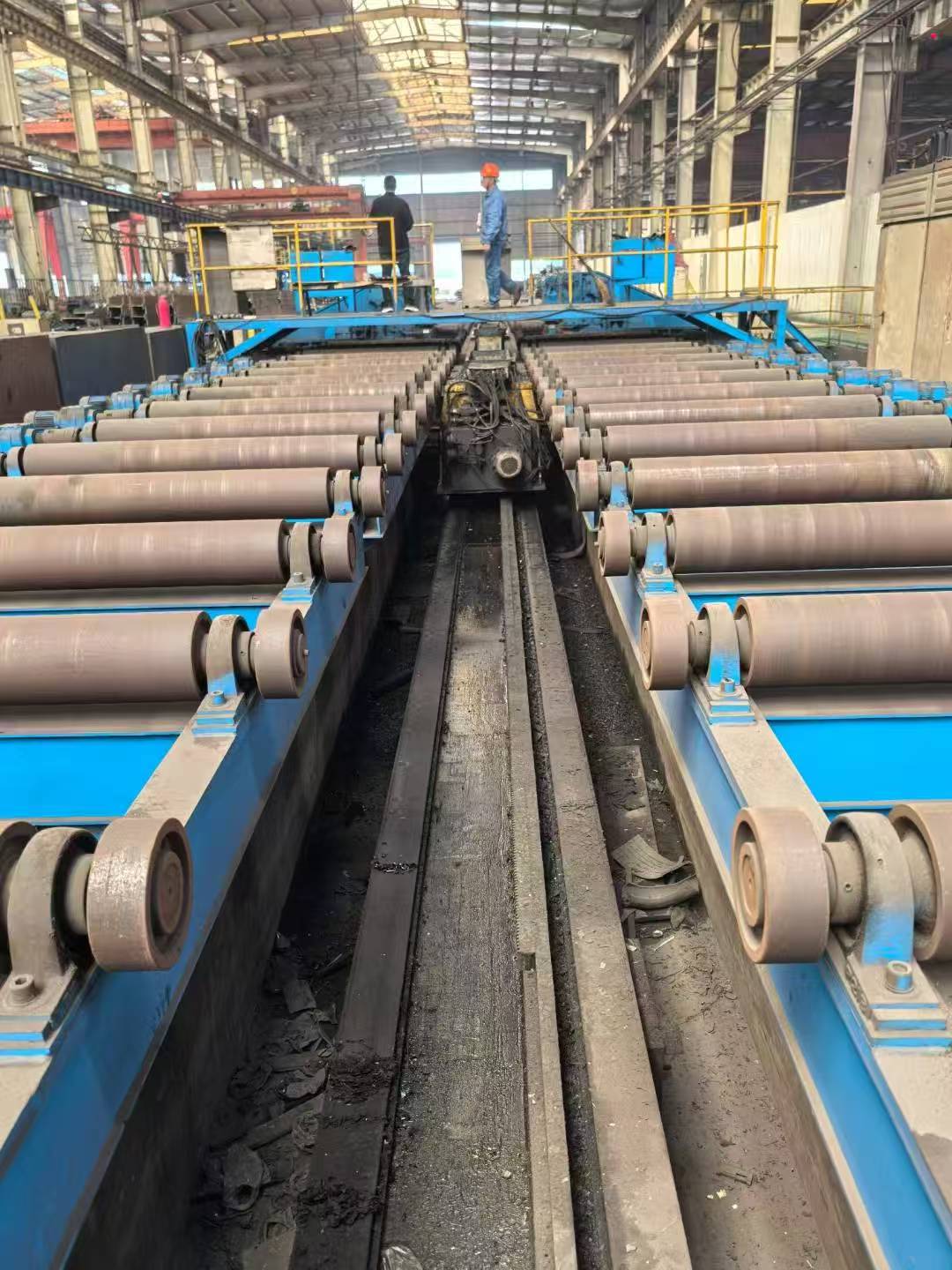

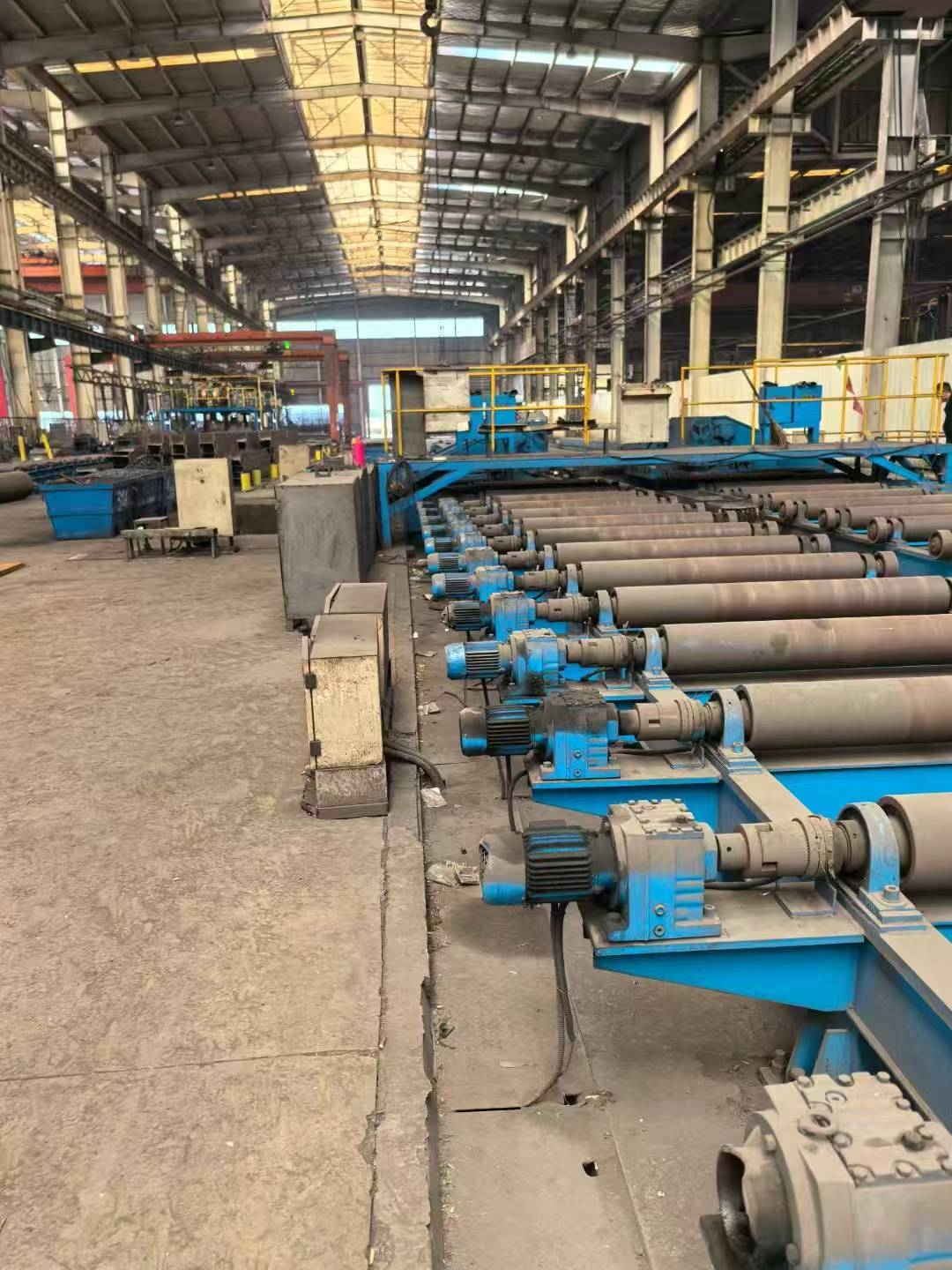

The above equipment includes auxiliary connecting equipment and transfer roller tables.
