1.1 Steel Coil Specifications

• Coil Width: 800–1800mm

• Strip Thickness: ≤25mm (Q235 material)

• Strip Material: Q235

• Pipe Diameter Range: φ820–φ3200mm

• Pipe Length: 12m

• Coil Inner Diameter (ID): Φ600–760mm

• Coil Outer Diameter (OD): Φ1500–Φ2100mm

• Coil Weight: ≤35 metric tons

1.2 Finished Product Specifications

• Pipe Diameter: Φ820–3200mm

• Wall Thickness: 8–25mm

• Pipe Weight: Max 18.6 metric tons

• Pipe Length: 12m

• Forming Angle: 40°–85°

• Maximum Pitch: Max 2400mm

1.3 Production Method

• Forming Type: Left-hand spiral up-coiling, externally adjustable forming (40°–85° angle)

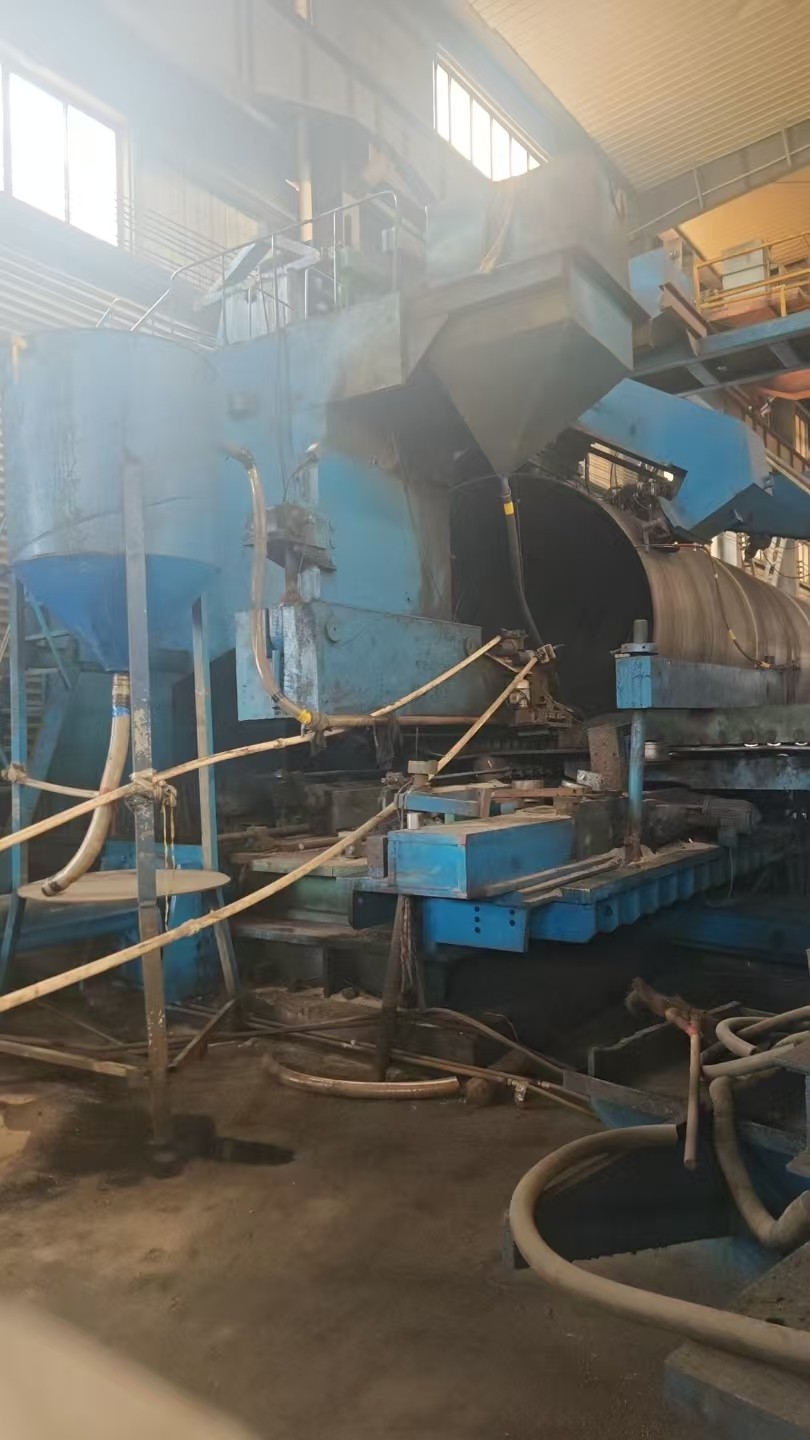

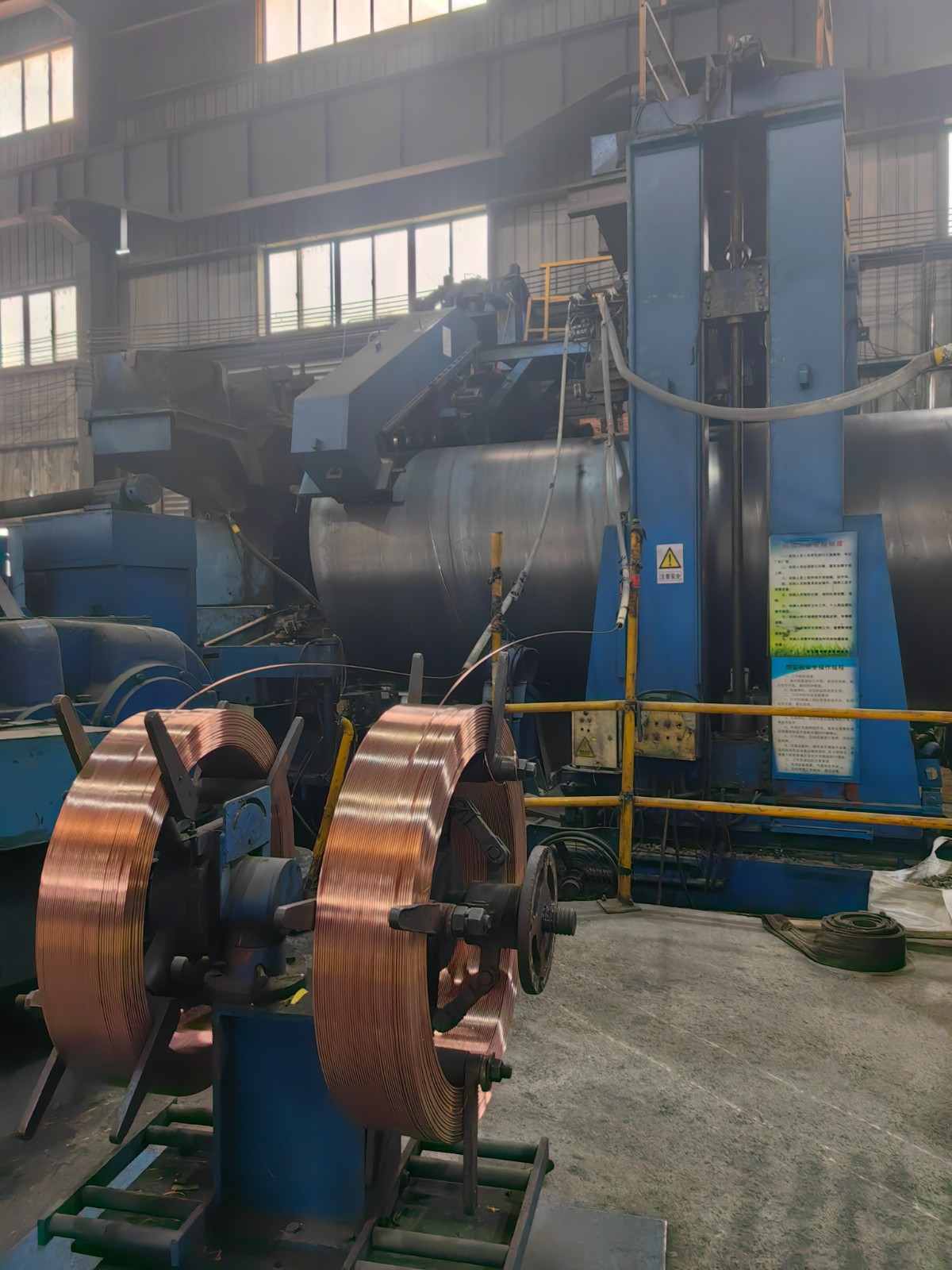

• Welding Method: Internal & external submerged arc welding (SAW)

1.4 Forming Process

• Centerline positioning feed

• Stop-on-plate butt welding

• Front-swing intermittent production

Machine Operating Speeds

• Strip Feeding Speed: 0.4–3 m/min

• Welding Speed: 0.4–2.5 m/min

made in 2013.

chinese brand

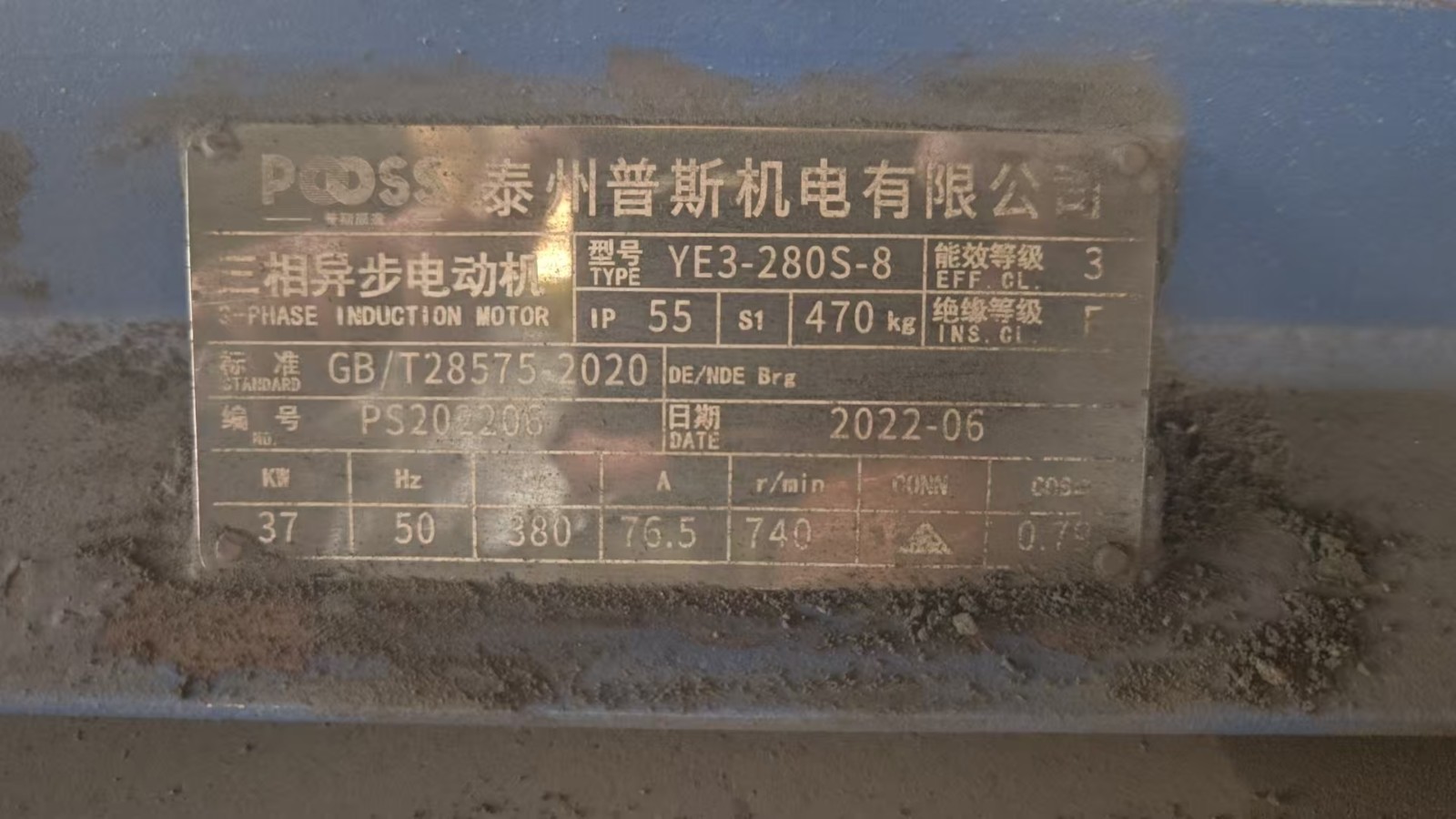

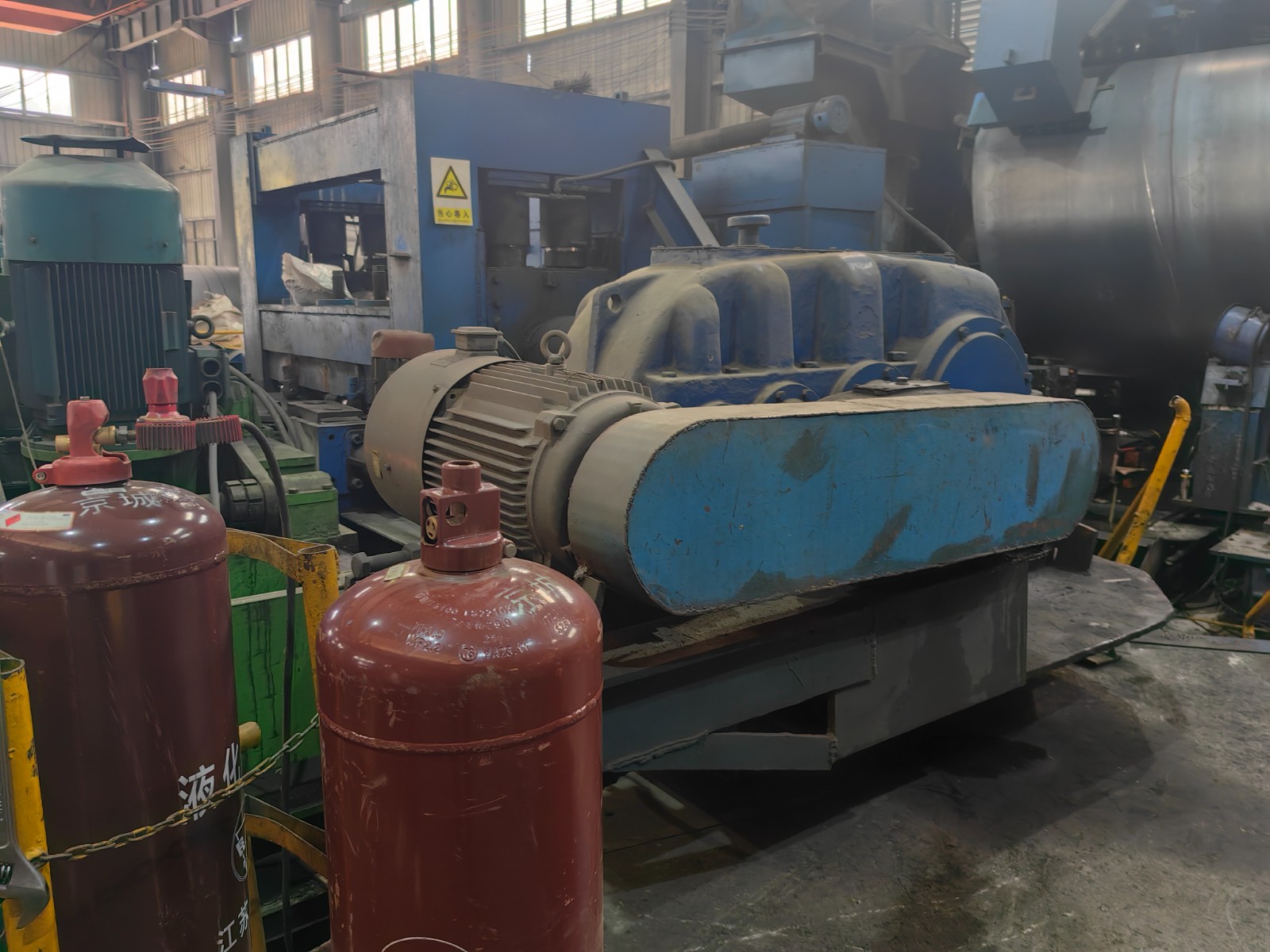

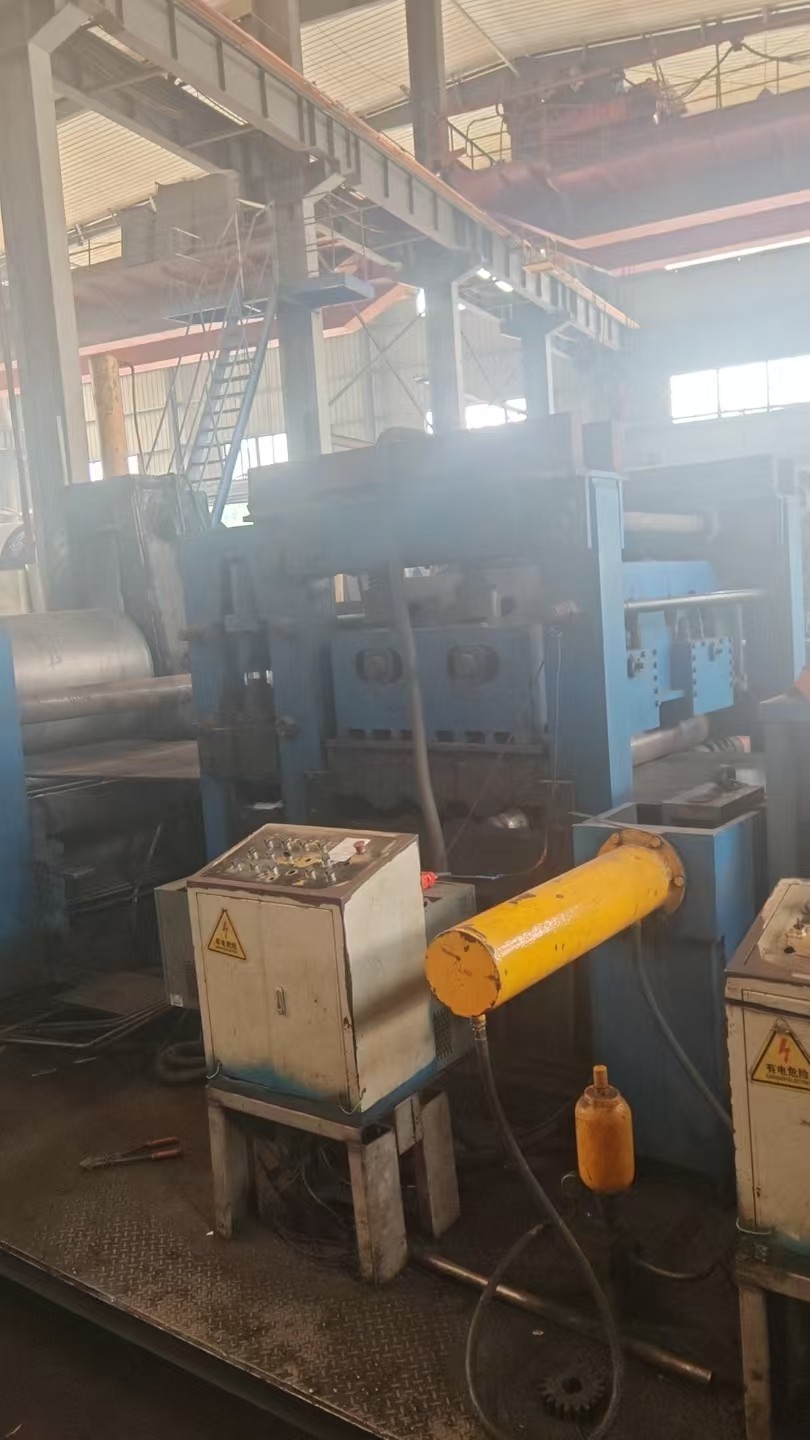

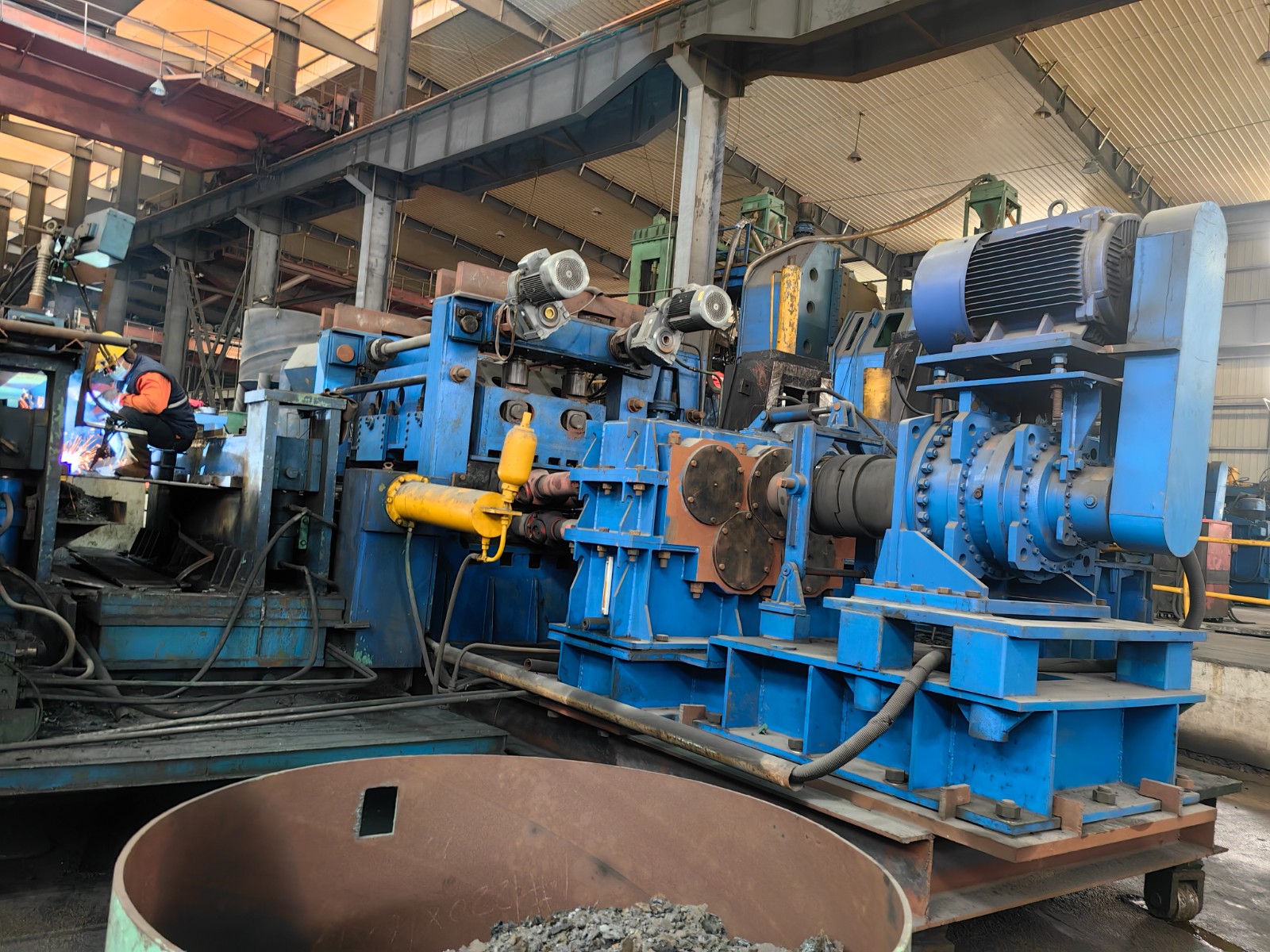

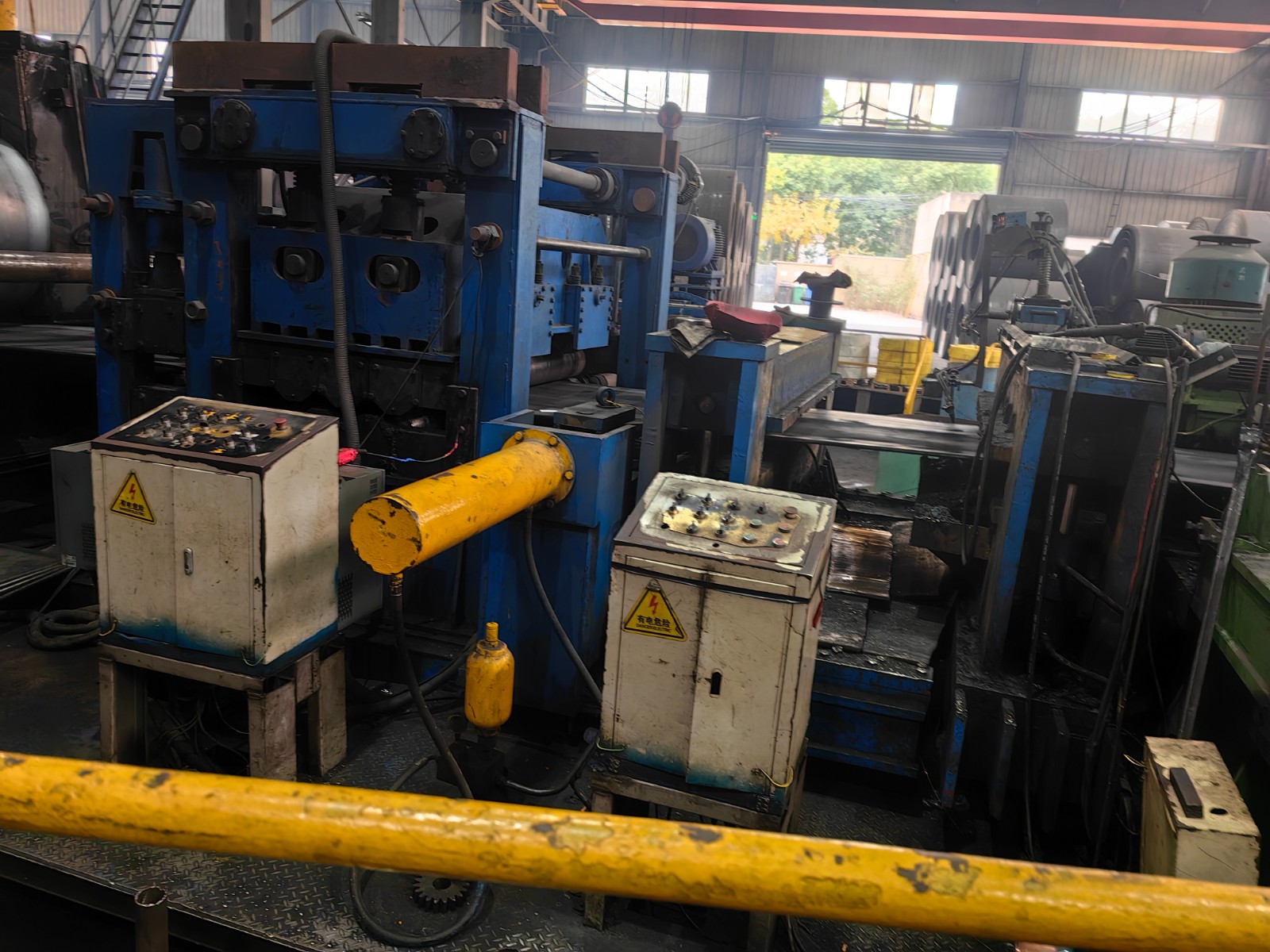

scope of supply:uncoiler,leveler,feeding machine,forming machine,ROT,electric system,hydraulic system

exciude edge trimmer,welder,shear welder
